Products

ADJUSTABLE propeller

Diameter: 1580 mm
Number of blades: 2-blade (available also in a left turn version)
Engine: ROTAX 447 (40 hp), ROTAX 503 (50 hp)
Weight: 3.6 kg
Technical description: view | download PDF

For engines ROTAX 447 and ROTAX 503 using B-2.58, C-2.62 or E-2.58 reducer.

ADJUSTABLE propeller

Diameter: 1580 mm
Number of blades: 3-blade (available also in a left turn version)
Engine: ROTAX 503 (50 hp), ROTAX 582 UL (60 hp, 65 hp), ROTAX 912 UL (80 hp), ROTAX 912 ULS (100 hp)
Weight: 4.9 kg
Technical description: view | download PDF

For engines ROTAX 503 and ROTAX 582 UL using B-2.58, C-2.62 or E-2.58 reducer.

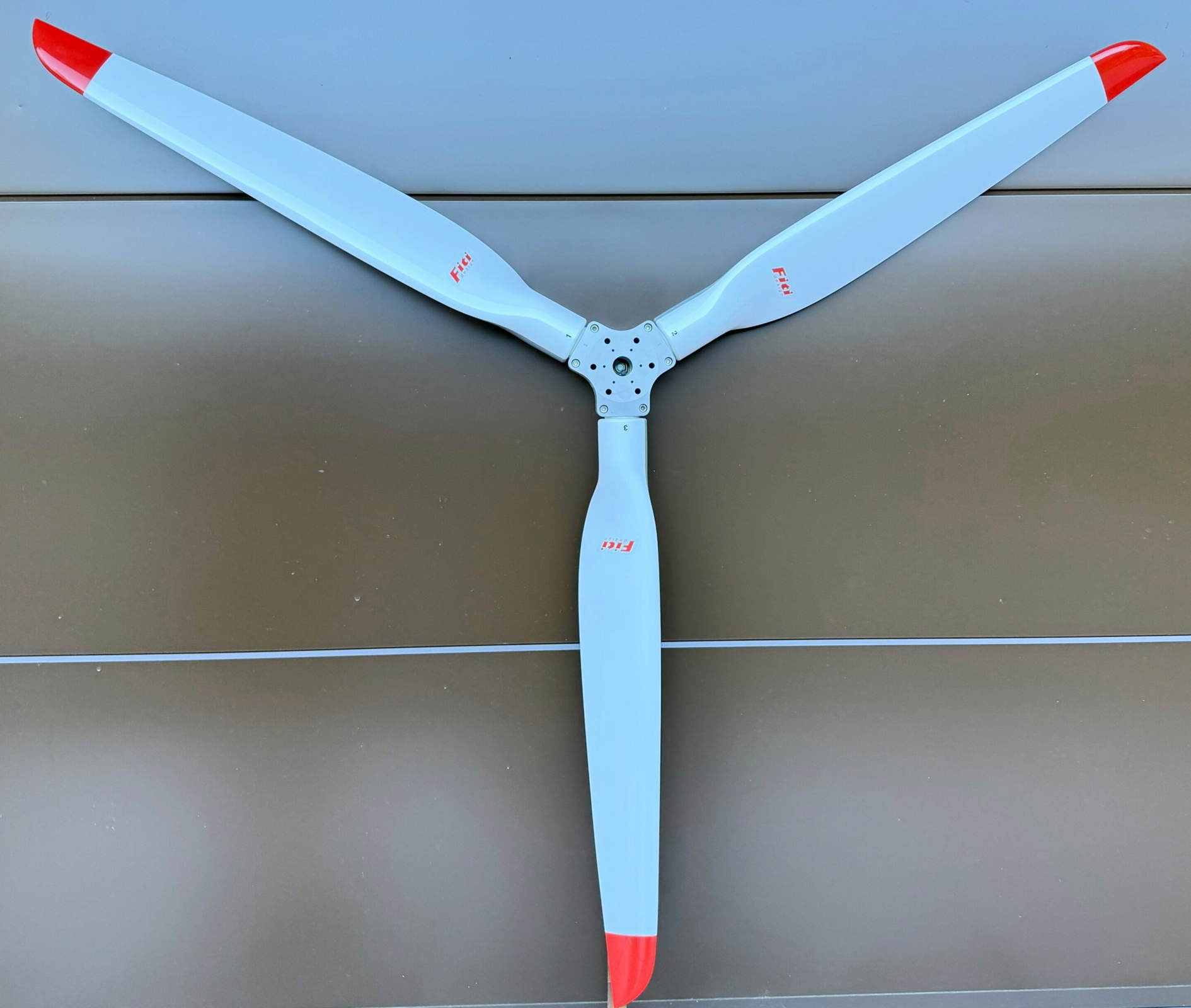

ADJUSTABLE propeller

Diameter: 1680 mm
Number of blades: 3-blade
Engine: ROTAX 912ULS (100 hp)
Weight: 5 kg
Technical description: view | download PDF

This type is suitable for towing gliders and banners.

In-flight adjustable propeller

Diameter: 1580 mm
Number of blades: 3-blade
Engine: ROTAX 912UL (80 hp), ROTAX 912ULS (100 hp)
Weight: 7.5 kg
Technical description: view | download PDF

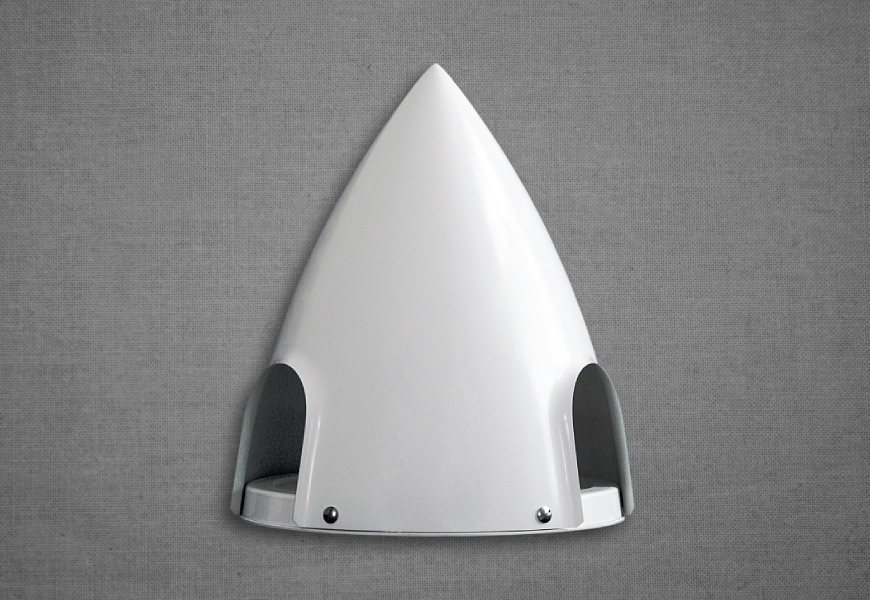

Propeller spinner

Diameter: 235 mm two-blade and three-blade, 260 mm three-blade

The propeller spinner base is made of carbon.
The propeller spinner is made of fiberglass, using
epoxy resin L285.
